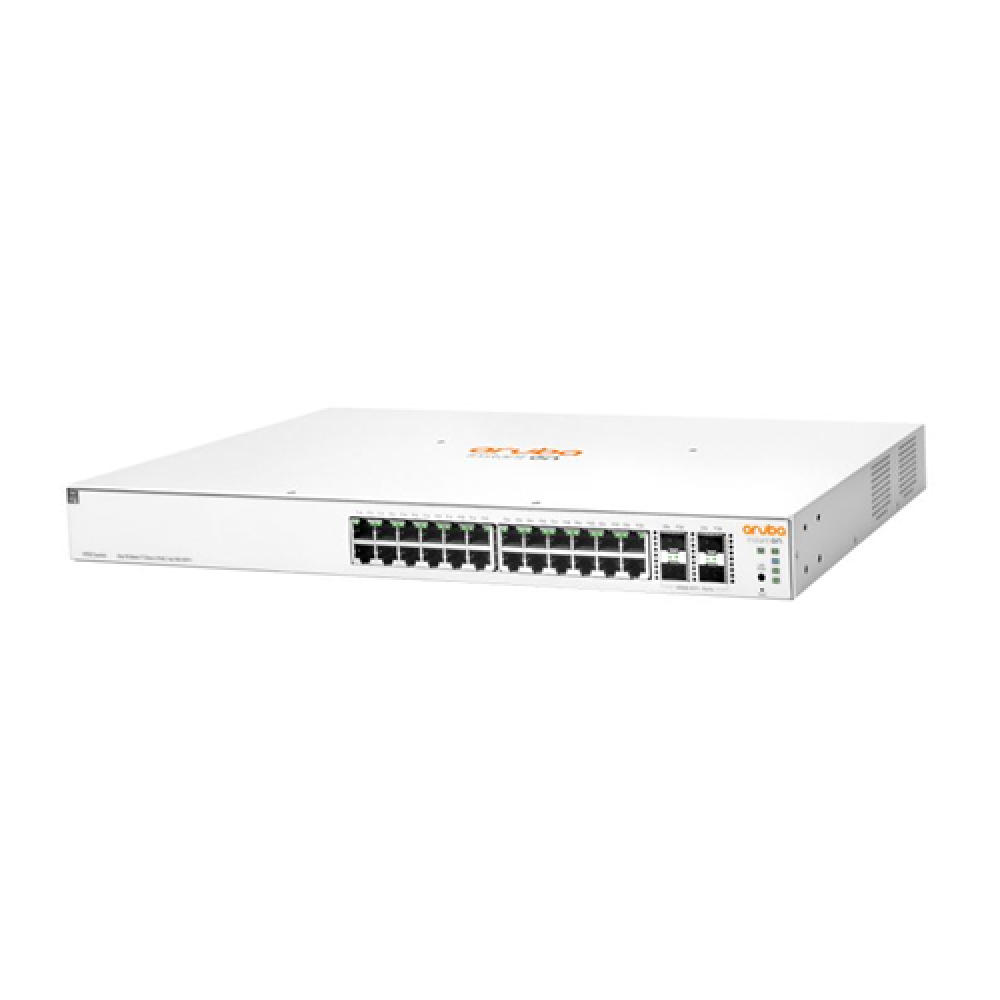

Aruba JL683A

الموديل: JL683A

المواصفات :

المنافذ:

24 RJ-45 autosensing 10/100/1000 Class 4 PoE ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP+ 1/10GbE ports

PoE: 195 W Class 4 PoE

Processor and memory: ARM Cortex-A9 @ 800 MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5 MB

Power Supply: Internal power supply

Switching capacity: 128 Gbps

الوزن: 3500g

الأبعاد: w17.42 x10.42(d)x1.73(h)

درجة حرارة التشغيل: °C0 to 40°C

Features

• Smart-managed layer 2+ Ethernet switch series ready to deploy in 8-, 24- and 48-port for non-PoE and Class 4 PoE (i.e. PoE+) models
•   PoE to power APs and IoT devices like IP phones, surveillance cameras and door locks
•   Two dedicated 1G SFP fiber ports on 8-port models, and four dedicated 1G/10G SFP+ fiber ports on 24-/48-port models to eliminate traffic bottlenecks across your network
•    Security controls let you define access in each area of your network, keeping your business data safe
•  Convenient mobile app and web-based GUI for set up, management and troubleshooting
