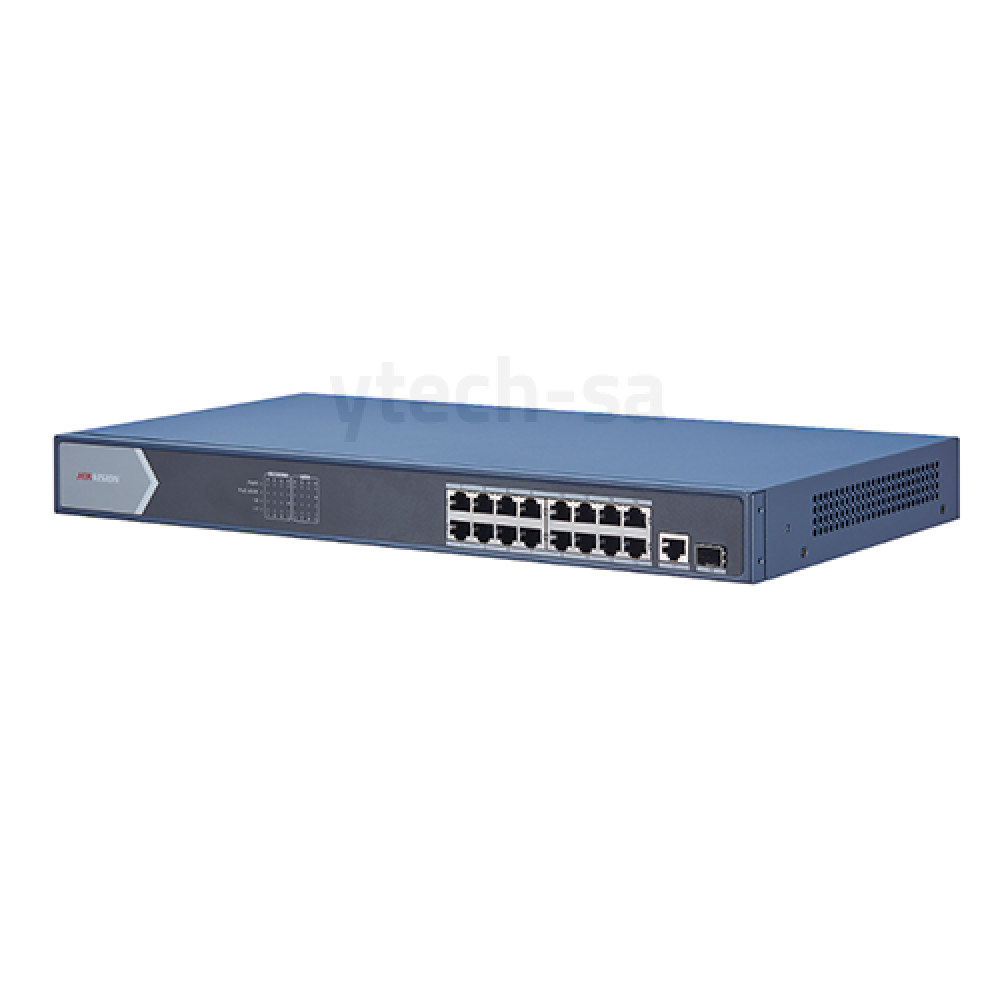

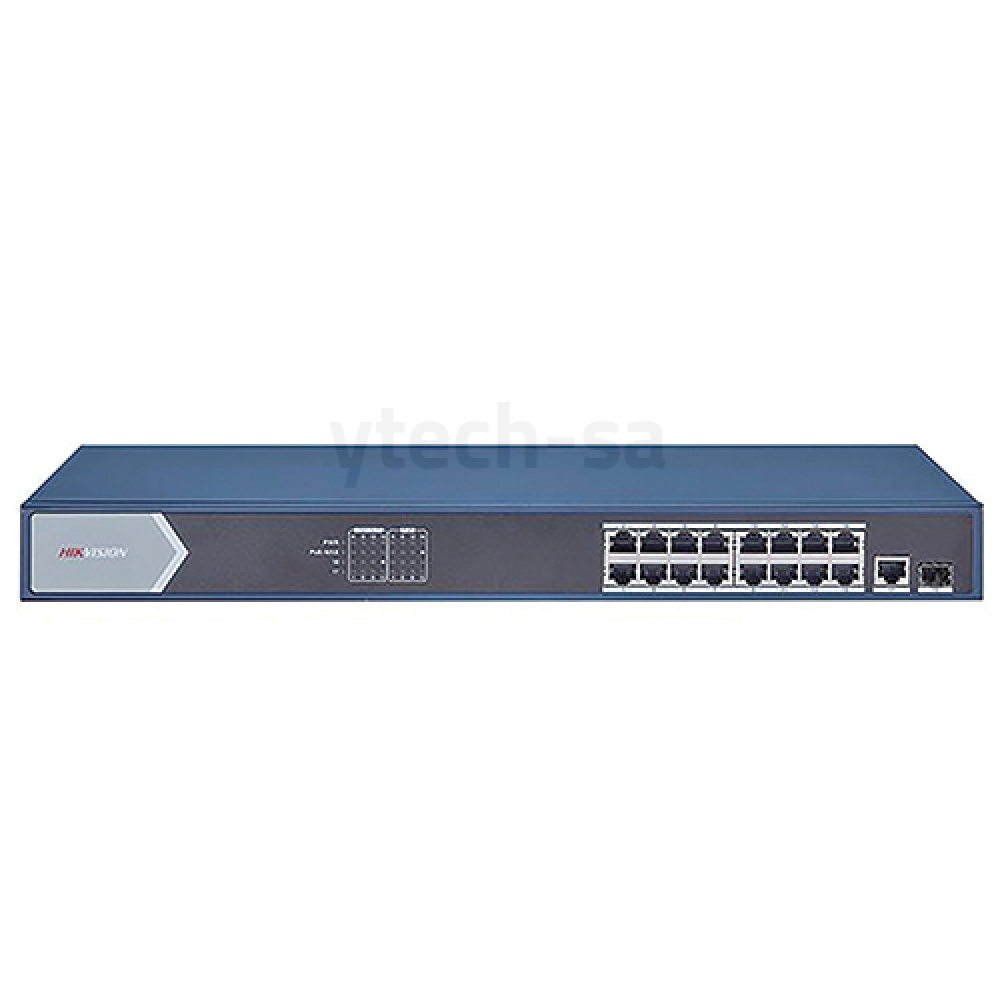

Hikvision DS-3E0518P-E

يرجى التواصل معنا لتأكد من توفر الكمية

الموديل : DS-3E0518P-E

المواصفات :

المنافذ :

16x Gigabit PoE ports, 1 × Gigabit RJ45 port, and 1 × Gigabit fiber optical port

الوزن : 3.53 kg

الأبعاد : 440mm × 44 mm × 220.8 mm

درجة حرارة التشغيل : 10C° to 55 °C-

Switching Capacity: 36 Gbps

Packet Forwarding Rate: 26.784 Mpps

Max. Port Power: 30 W

PoE Power Budget: 230 W

Power Supply: 100 to 240 VAC, 50/60 Hz, Max. 4 A

Approval

EMC: FCC (ANSI C63.4, 47 CFR PART 15B); CE-EMC/RCM (EN 55032: 2015+A11:2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020); IC (ICES-003: Issue 11)

Safety: UL (UL 62368-1); CB/RCM (IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2021)

Chemistry: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/201

Feature and Function

16X Gigabit PoE ports, 1 × Gigabit RJ45 port, and 1 × Gigabit SFP fiber optical port.
IEEE 802.3at/af standard.
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard.
6KV surge protection for PoE ports.
PoE power management.
Gigabit network access.
Wire-speed forwarding and non-blocking design.
Store-and-forward switching.
Solid high-strength metal shell.
