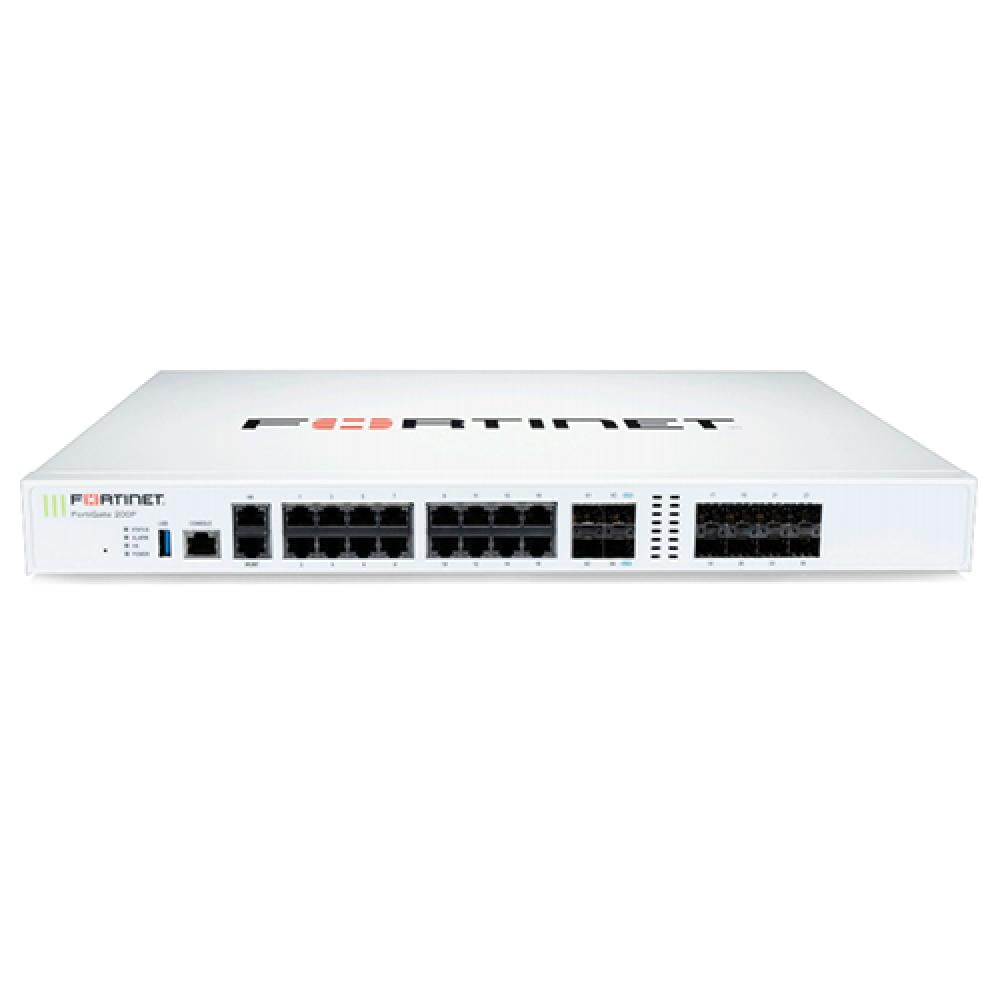

Firewall FortiGate FortiGate-200F
model:fortigate-200f
Interfaces and Modules
GE RJ45 Ports:16
GE RJ45 Management / HA:1 / 1
GE SFP Slots:8
10GE SFP+ FortiLink Slots (default) :2
10GE SFP+ Slots;2
USB Port:1
Console Port:1
Onboard Storage:0
Included Transceivers:0
System Performance — Enterprise Traffic Mix
IPS Throughput :5 Gbps
NGFW Throughput :3.5 Gbps
Threat Protection Throughput :3 Gbps
System Performance and Capacity
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP):27 / 27 / 11 Gbps
Firewall Latency (64 byte, UDP):4.78 μs
Firewall Throughput (Packet per Second):16.5 Mpps
Concurrent Sessions (TCP):3 Million
New Sessions/Second (TCP):280,000
Firewall Policies:10,000
IPsec VPN Throughput (512 byte) :13 Gbps
Gateway-to-Gateway IPsec VPN Tunnels:2,500
Client-to-Gateway IPsec VPN Tunnels:16,000
SSL-VPN Throughput:2 Gbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode):500
SSL Inspection Throughput (IPS, avg. HTTPS): 4 Gbps
SSL Inspection CPS (IPS, avg. HTTPS) : 3,500
SSL Inspection Concurrent Session (IPS, avg. HTTPS): 300,000
Application Control Throughput (HTTP 64K) :13 Gbps
CAPWAP Throughput (HTTP 64K):20 Gbps
Virtual Domains (Default / Maximum):10 / 10
Maximum Number of FortiSwitches Supported:64
Maximum Number of FortiAPs (Total / Tunnel):256 / 128
Maximum Number of FortiTokens:5,000
High Availability Configurations:Active, Active-Active, Passive, Clustering
Dimensions and Power
Height x Width x Length (inches):1.73 x 17.01 x 13.47
Height x Width x Length (mm):44 x 432 x 342
Weight:9.92 lbs (4.5 kg)
Form Factor:Ear Mount, 1 RU
AC Power Supply:100–240V AC, 50/60 Hz
Power Consumption (Average / Maximum):101.92 W / 118.90 W
Current (Maximum):100V / 2A, 240V / 1.2A
Heat Dissipation:405.70 BTU/h
Redundant Power Supplies:Yes
Operating Environment and Certifications
Operating Temperature:32–104°F (0–40°C)
Storage Temperature:-31–158°F (-35–70°C)
Humidity:20–90% non-condensing
Noise Level:49.9 dBA
Forced Airflow:Side to Back
Operating Altitude:Up to 7,400 ft (2,250 m)
Compliance:FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI
Certifications:ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN, IPv6
